Material: high-impact uPVC with enhanced steel geometry
- High insulation five chamber profile cross section with 76 mm sash construction depth, Uf= 1.4 W/(m²K).
- Large scale steel reinforcements for optimized positive action connections, use of two steel profiles in the casement.
- Peripheral EPDM glazing gasket.
- High quality sealing elements for efficient sealing.
- Glazing thicknesses 24mm up to 48 mm
- Backset glazing bead with shortened coextruded seal lip for enhanced visual appeal and easier cleaning.
- Concealed casement screw unions in preformed receivers.

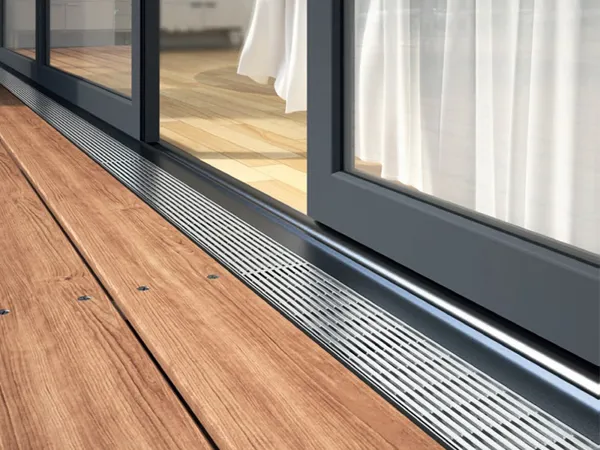

- Threshold designed for the perfect thermal properties flush with inner floor.
- Barrier-free building with a track variant.
- Complete profile series (main and secondary profiles) are stabilized with environmentally friendly calcium / zinc instead of lead
Product Catalogue
Material: high-impact uPVC with enhanced steel geometry
- High insulation five chamber profile cross section with 88 mm sash construction depth, Uf= 1.3 W/(m²K).
- Large scale steel reinforcements for optimized positive action connections, use of two steel profiles in the casement.
- Peripheral EPDM glazing gasket.
- High-tech two component gasket ideal for permanently loaded moving parts
- High quality sealing elements for efficient sealing.
- Glazing thicknesses 24mm up to 56 mm
- Backset glazing bead with shortened coextruded seal lip for enhanced visual appeal and easier cleaning.
- Concealed casement screw unions in preformed receivers.
- WPC threshold designed for the perfect thermal properties flush with inner floor.
- Barrier-free building with a track variant.
- Complete profile series (main and secondary profiles) are stabilized with environmentally friendly calcium / zinc instead of lead
